Laminated ceramic capacitor (MLCC): also known as monolithic capacitors, Fenghua‘s official name is the multilayer ceramic capacitor, in short it means the same thing. Using multi-layer structure, often a MLCC internal as many as dozens of layers, or even more. Among them, each single layer is equivalent to a capacitor, dozens of layers is equivalent to dozens of capacitors in parallel. So MLCC capacity to do a lot, but the voltage is not high. Generally surface mount (SMD).

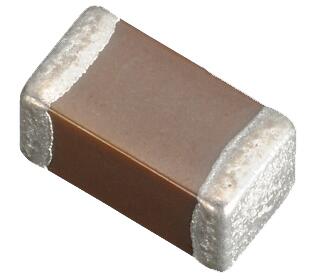

The conventional SMD capacitor rated voltage Fenghua provided are 6.3V~50V. Because of its wide use, the market is referred to the patch capacitors are referred to as MLCC, rather than a patch of tantalum capacitors or aluminum electrolytic capacitors. The ceramic capacitor has become the mainstream of the market, its capacity is bigger and bigger, on some occasions can already replace expensive tantalum capacitors, SMD capacitors at the same time, the specifications are becoming more and more miniaturized, 0402 package has increasingly become one of the main specifications in the market. The following picture is the appearance of the patch capacitor:
One stone capacitor: MLCC is a variant of the MLCC welding two leads, encapsulated with epoxy resin. With the trend of miniaturization of electronic products continue to develop, the use of single stone capacitor will continue to decrease, and was replaced by MLCC. The single stone capacitor leads to different lead direction and surface material, which is divided into three kinds: radial leaded multilayer ceramic capacitors, Axial Leaded multilayer ceramic capacitors (also known as: laser capacitors), and axial color ring capacitors. The physical picture of the single stone capacitor is as follows:

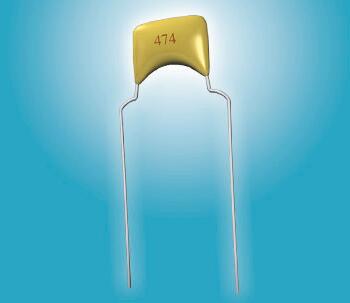

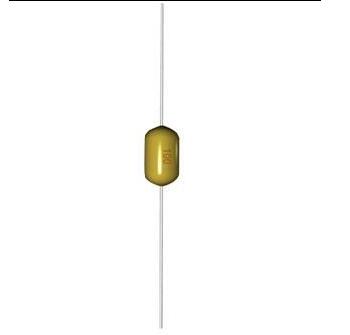

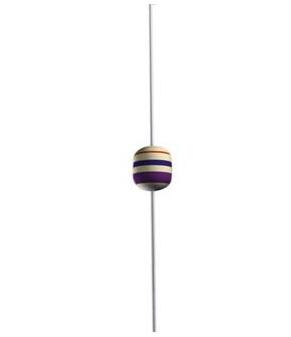

1, radial leaded multilayer ceramic capacitor. 2, axial laser capacity of the physical picture 3, axial color ring capacitor real picture
