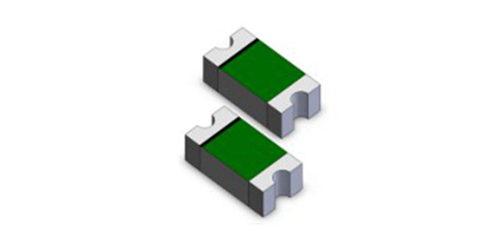

SMD0603 series fuse product introduction
SMD0603 fuse: SMD, lead-free, reel packaging self recovery fuse, suitable for automatic mounting, used in high density circuit board, working current: working voltage: 15V ~ 1A maximum working temperature: -40~85 degrees. SMD0603 package series chip fuse:
SMD0603-010, SMD0603-020, SMD0603-025, SMD0603-035, SMD0603-050, SMD0603-075, SMD0603-100.

SMD0603 series patch fuse symbol definition:
The maximum voltage of Vmax:WHSMD under the blocking state.
Imax:WHSMD can withstand the maximum current.
Maximum operating current of Ih:TGSMD at 25.
The minimum current of It:TGSMD starting protection at 25.
Power consumption of Pd:TGSMD in static air at 25.
Rmin:TGSMD in the initial minimum resistance before work.
After R1max:TGSMD reflow, the maximum resistance value of 1 hours after cooling at 25.
