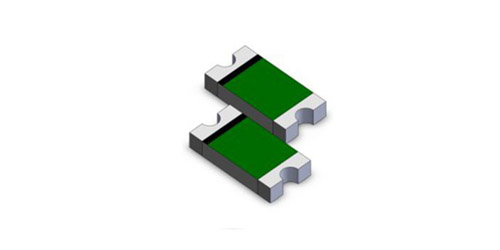

SMD1206 patch self recovery fuse series products
SMD1206 patch fuses: patch type, lead free, coil packaging since the recovery of the fuse, applied to high density circuit board, working current: 0 0A 05-2 working voltage: 6-60V operating temperature: -40~+85.

SMD1206 package series patch self recovery fuse:
SMD1206-005, SMD1206-010, SMD1206-012, SMD1206-020, SMD1206-025, SMD1206-025/18V, SMD1206-035, SMD1206-050, SMD1206-050/13.2V, SMD1206--075, SMD1206-100, SMD1206-110, SMD1206-110/16V, SMD1206-150, SMD1206-200.

SMD1206 patch fuse series symbol definition:
The maximum voltage of Vmax:WHSMD under the blocking state.
Imax:WHSMD can withstand the maximum current.
Maximum operating current of Ih:TGSMD at 25.
The minimum current of It:TGSMD starting protection at 25.
Power consumption of Pd:TGSMD in static air at 25.
Rmin:TGSMD in the initial minimum resistance before work.
After R1max:TGSMD reflow, the maximum resistance value of 1 hours after cooling at 25.
