SOD-323 package dimensions,ESD3B5V the most complete specifications

Publish：Shenzhen Tergy Technology Co., Ltd. Time：2016-12-29

Features
●Ultra low leakage: nA level
●Operating voltage: 5V
●Low clamping voltage
●Complies with following standards:
– IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV
Contact discharge: ±8kV
– IEC61000-4-4 (EFT) 40A (5/50ns)
– IEC61000-4-5 (Lightning) 12A (8/20μs)
●RoHS Compliant

Dimensions SOD-323

Applications
●USB 2.0 power and data line
●Set-top box and digital TV
●Digital video interface (DVI)
●Notebook Computers
●SIM Ports
●10/100 Ethernet

Pin configuration

Mechanical Characteristics
●Package: SOD-323
●Lead Finish: Lead Free
●UL Flammability Classification Rating 94V-0
●Quantity Per Reel:3,000pcs
●Reel Size:7 inch

Absolute Maximum Ratings(Tamb=25°C unless otherwise specified)

Parameter	Symbol	Value	Unit
Peak Pulse Power (8/20µs)	Ppp	320	W
ESD per IEC 61000−4−2 (Air)	VESD	± 15	Kv

ESD per IEC 61000−4−2 (Contact)		± 8
ESD per IEC 61000−4−2 (Contact)		± 8

Operating Temperature Range	TJ	-55 to +125	℃

Storage Temperature Range	TSTJ	-55 to +150	℃

Electrical Characteristics(TA=25°C unless otherwise specified)

	Device	VRWM	VBR	IT	VC		Vc		IR	C
									IR	C
Part Number									μA	(Pf)
Part Number	Marking	(V)	(V)	(mA)	@1A				μA	(Pf)
	Marking	(V)	(V)	(mA)	@1A	(Max)		(@A)	(Max)	(Typ.)
									(Max)	(Typ.)


ESD3B5V	CL	5	6	1	9.8	17		24	1	6

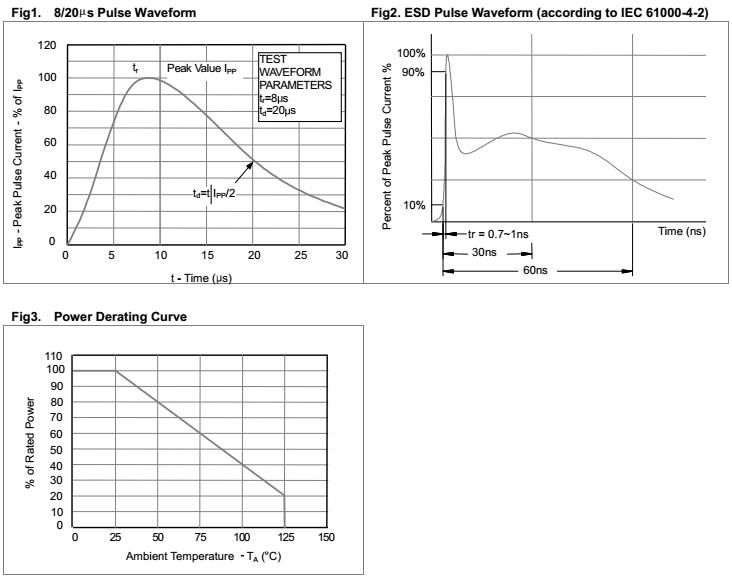

Characteristic Curves
特性曲線(xiàn)

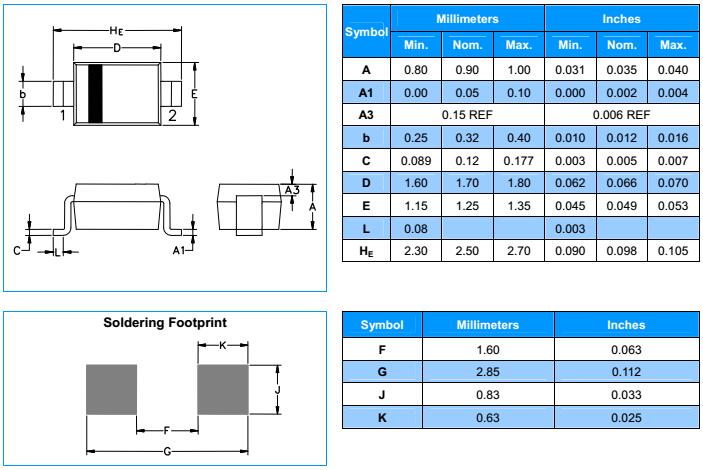

SOD-323 Package Outline & Dimensions
SOD-323封裝外形及尺寸

SOD-323封裝規格書(shū)下載→ →→
